Centralized Ingress (Inspection First)

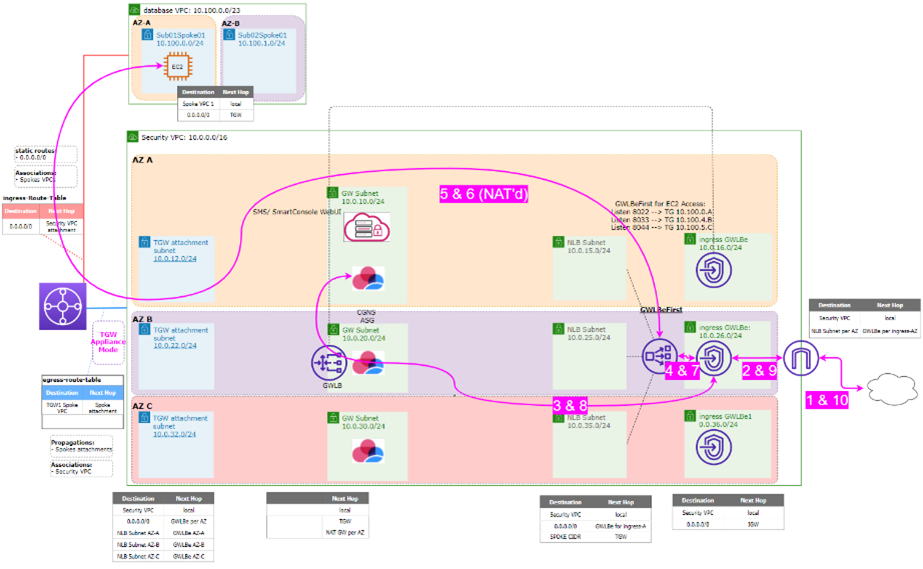

Flow Description & Diagram
| # | Hop description |
|---|---|
| 1 | Internet to NLB:8022 |
| 2 | Ingress RT NLB –> GWLBe |
| 3 | GWLBe magic: GWLB (GENEVE) –> CGNS and return back to GWLBe |
| 4 | GWLBe Sec VPC –> Local (NLB) |
| 5 | NLB (NAT) Spoke CIDR –> TGW –> Propagated Spokes |
| 6-10 | Reverse Flow |
Testing Procedure
- SSH to the NLBInspectionFirst:8033 with ee-default-keypair

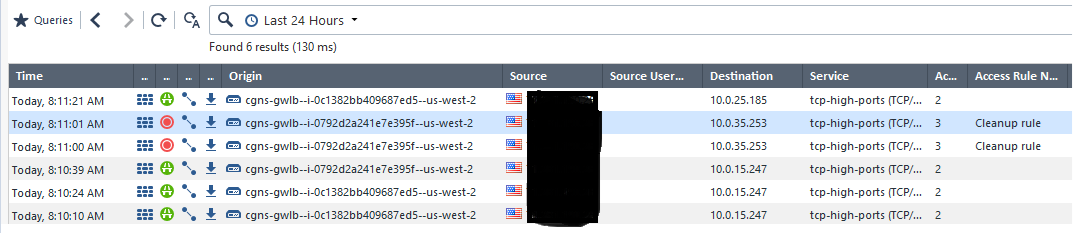

- Search for your Public IP address or the internal IP of the destination EC2 Host
