Centralized Ingress (Inspection Second)

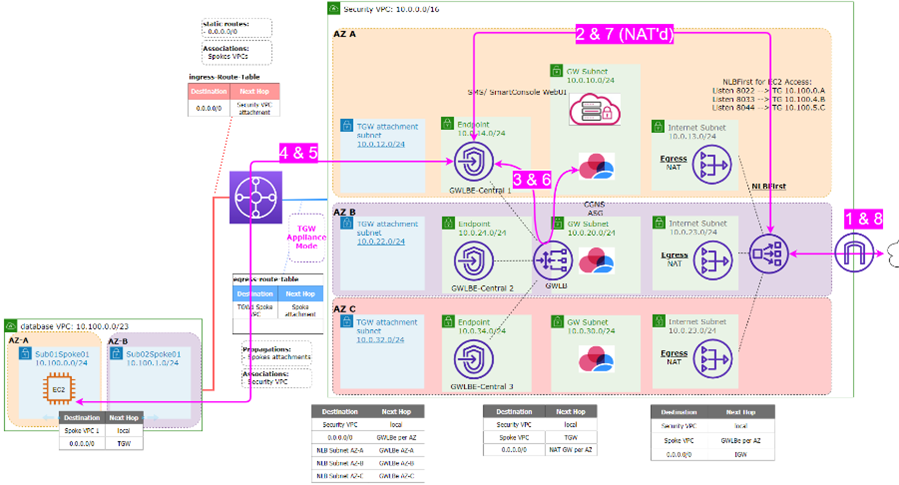

Flow Description & Diagram
| # | Hop description |
|---|---|
| 1 | Internet to NLB:8022 |
| 2 | NLB (NAT) SpokeCIDR –> GWLBe |
| 3 | GWLBe magic: GWLB (GENEVE) –> CGNS and return back to GWLBe |
| 4 | GWLbe Spoke CIDR –> TGW –> Propagated Spokes |
| 5-8 | Reverse Flow |
Testing Procedure
- SSH to the NLBInspectionSecond:8022 with ee-default-keypair

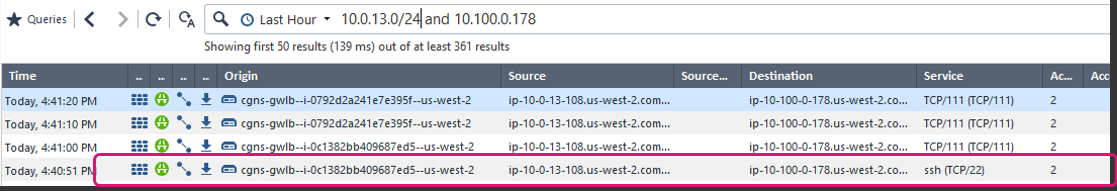

- Search for the NLB IP (10.0.13.0/24) and internal IP of the EC2 Host in databse VPC (10.100.0.x)
- Port 22 is the traffic you just generated
- Port 111 is health checks
